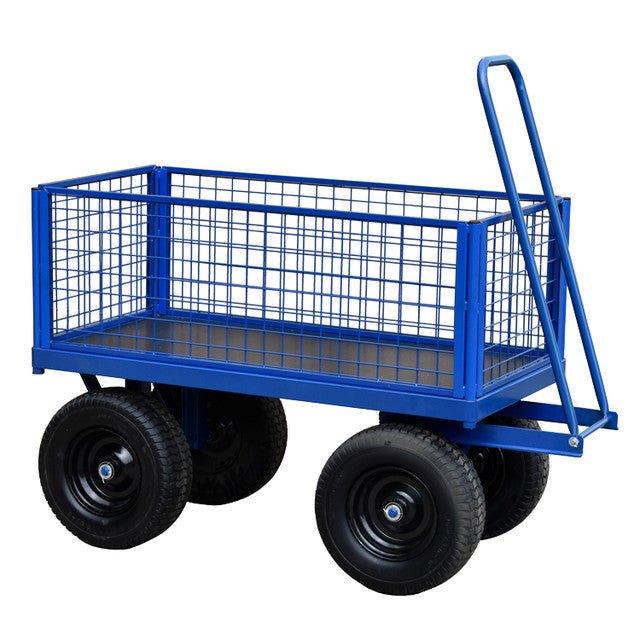

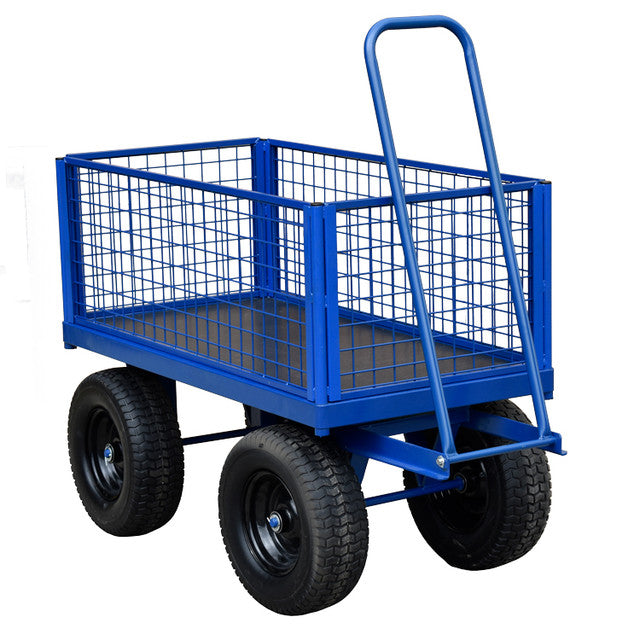

Turntable Truck with 400mm Sides - 1000kg Capacity

Turntable Truck with Removable 400mm Sides | 1000kg UDL

A heavy duty turntable truck designed for transporting large loads across rough or uneven ground. With a 1000kg uniformly distributed load capacity, removable 400mm side panels, and large diameter wheels, it delivers stability, control, and load security in demanding working environments.

Ideal for yards, warehouses, industrial sites, and outdoor use where standard platform trucks fall short.

Industrial Steel Chassis

Manufactured from heavy duty steel using 25mm x 50mm box section, offering significantly greater strength and rigidity than angle iron frames. The single-piece box section is laser cut and formed for a clean finish with rounded corners and a highly rigid structure that resists impact and deformation.

Thick steel axle supports distribute weight evenly across the chassis for improved stability and long service life. Finished with a durable powder coat for added protection and backed by a 5 year warranty.

Heavy Duty Wheels for Rough Terrain

Equipped with large 405mm diameter wheels to handle uneven surfaces with confidence. Reinforced hubs and rims support high loads while maintaining smooth rolling performance.

Wheel options:

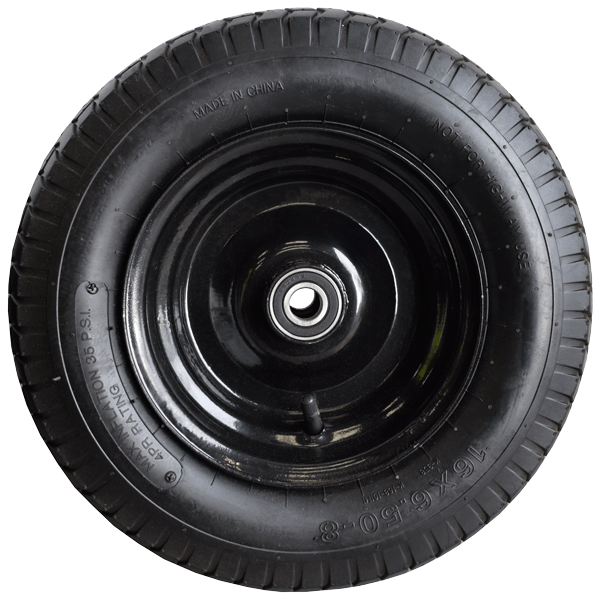

• Pneumatic tyres for improved shock absorption

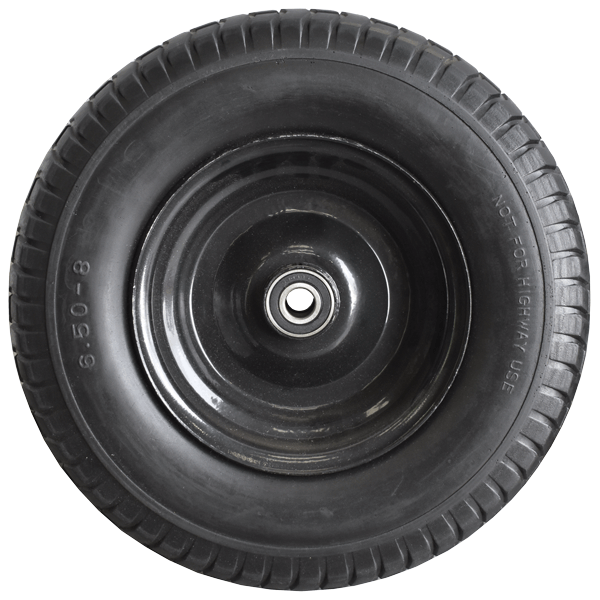

• Polyurethane foam tyres for puncture-proof, low maintenance use

Non-Slip Phenolic Base

The phenolic board deck provides superior grip compared to standard timber boards, reducing load movement during transport. Weather resistant and highly durable, it is suitable for both indoor and outdoor applications.

Removable Side Panels

Supplied with 400mm high removable sides to improve load retention. Panels can be easily removed for oversized items or open loading requirements.

Side panel options:

• 400mm mesh
• 400mm board
• 400mm sheet steel

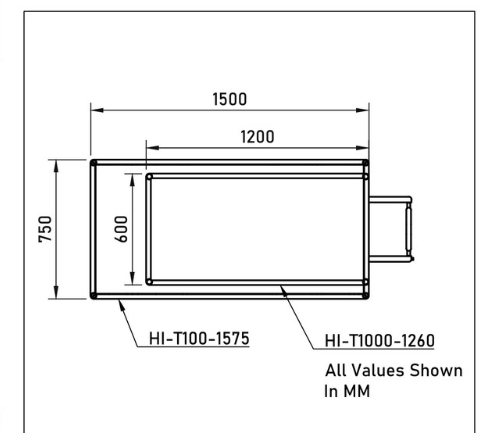

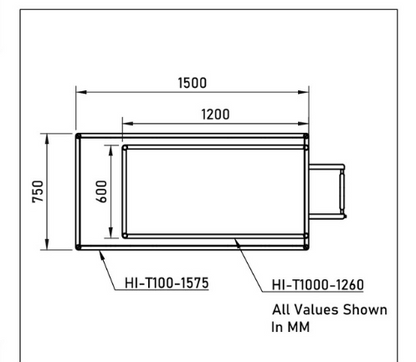

Available Base Sizes

• 1200mm x 600mm for improved manoeuvrability
• 1500mm x 750mm for larger or bulkier loads

Specifications

• Capacity: 1000kg UDL
• Base Height: 485mm
• Wheel Diameter: 405mm
• Wheel Type: Pneumatic or Polyurethane
• Base Material: Phenolic Board
• Chassis Material: Steel
• Base Size Options: 1200mm x 600mm / 1500mm x 750mm
• Side Panel Options: 400mm Mesh, Board, or Sheet Steel
• Warranty: 5 Years
