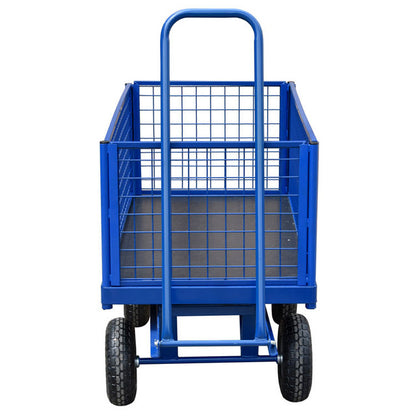

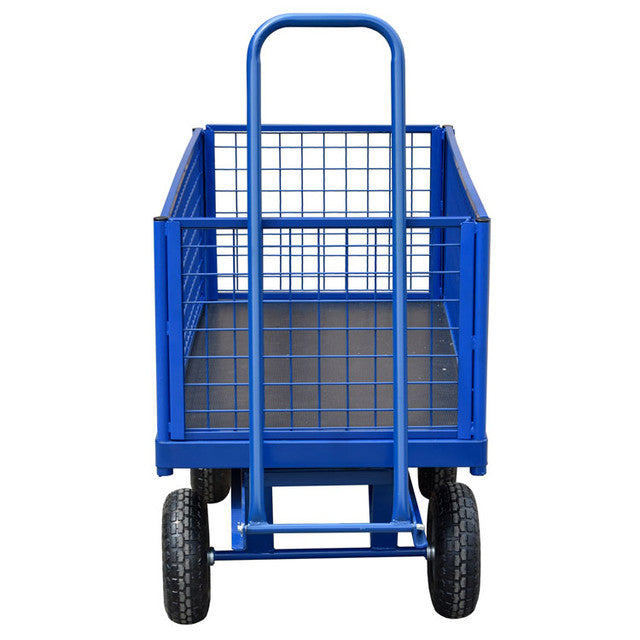

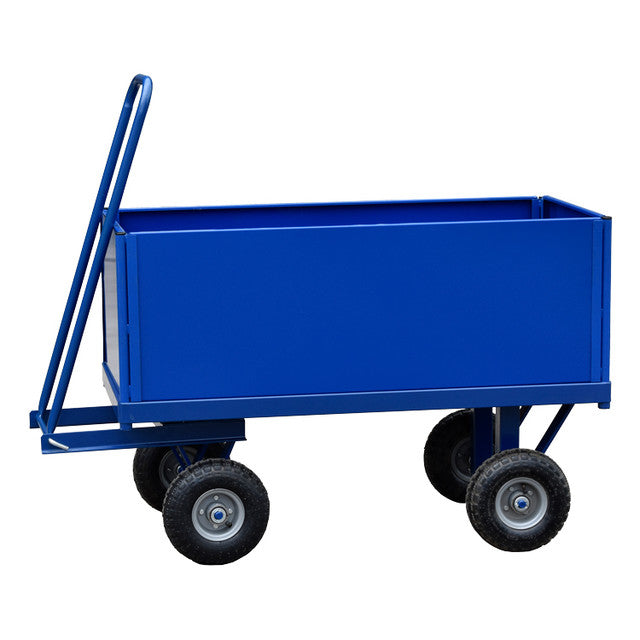

Turntable Trailer with 400mm Sides | 500KG Capacity

Turntable Trailer with Removable Sides | 500kg UDL

A robust pull-along turntable trailer designed for rough terrain and demanding environments. With a 500kg uniformly distributed load capacity, a non-slip phenolic base, and removable side panels, this trailer makes securing and transporting loads safer, faster, and more efficient.

Ideal for yards, warehouses, industrial sites, and outdoor use where standard platform trucks struggle.

Industrial Steel Chassis

Built on a heavy-duty steel chassis using 25mm x 50mm box section for superior strength and rigidity. The single-piece box section is laser cut and formed for a clean finish with rounded corners, reducing snag points and improving durability.

Thick steel axle supports distribute weight evenly across the frame, improving stability under load. Finished with a high-quality powder coat for long-term protection in tough working conditions.

Heavy Duty Wheels for Rough Ground

Fitted with large-diameter wheels designed to handle uneven surfaces with ease. Reinforced hubs and rims provide excellent load handling and ride quality, while sealed bearings ensure smooth movement and long service life.

Available with either:

• Air filled pneumatic tyres for shock absorption

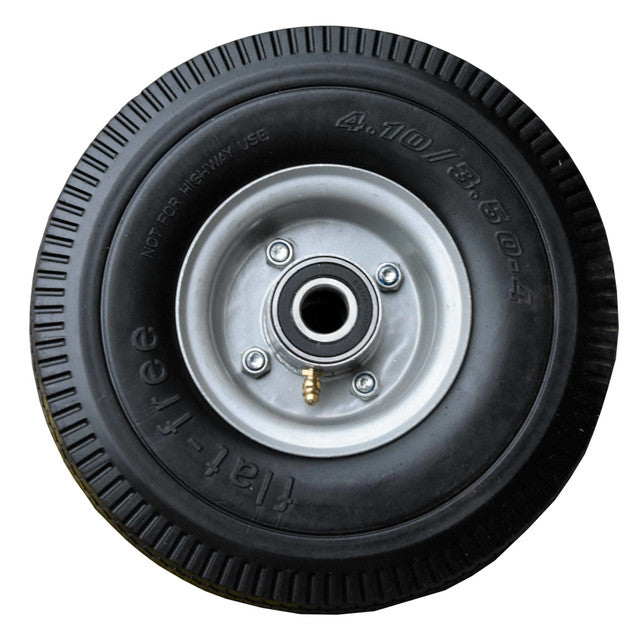

• Puncture-proof polyurethane foam tyres for low maintenance environments

Non-Slip Phenolic Loading Bed

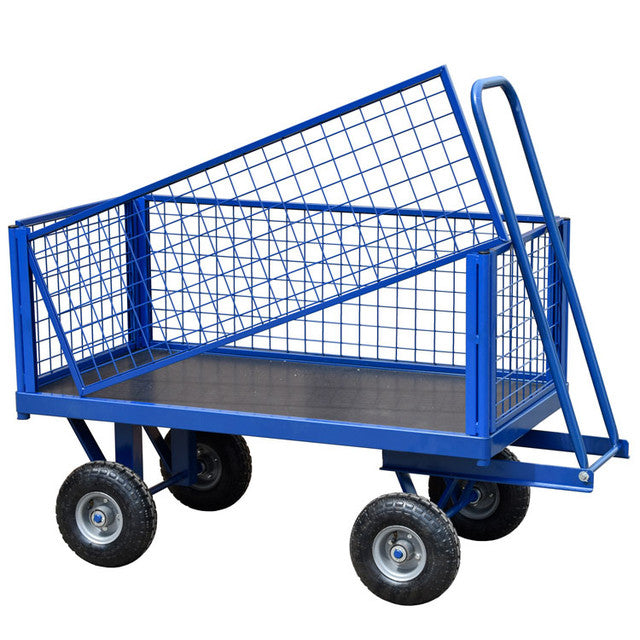

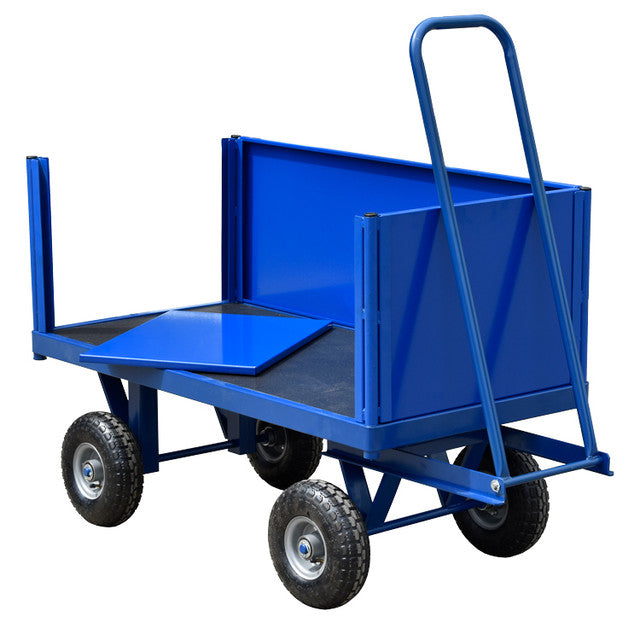

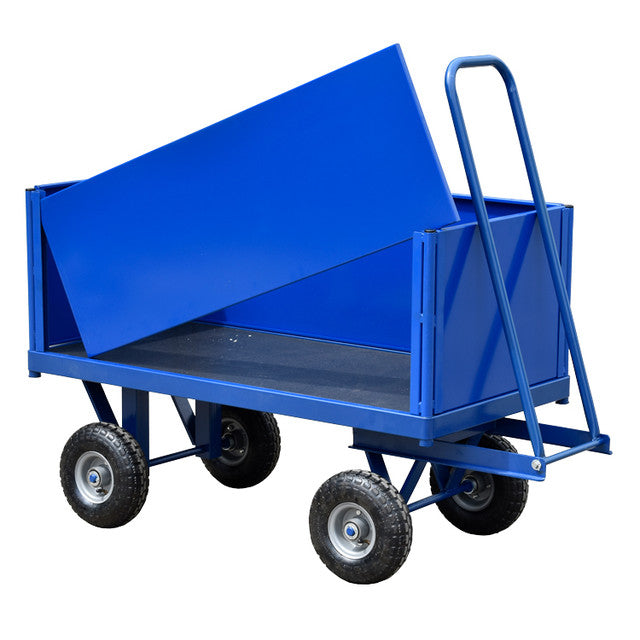

Upgraded phenolic board deck offers excellent grip in wet or dirty conditions, reducing load movement during transport. Removable side panels allow easier loading, unloading, and load restraint depending on your application.

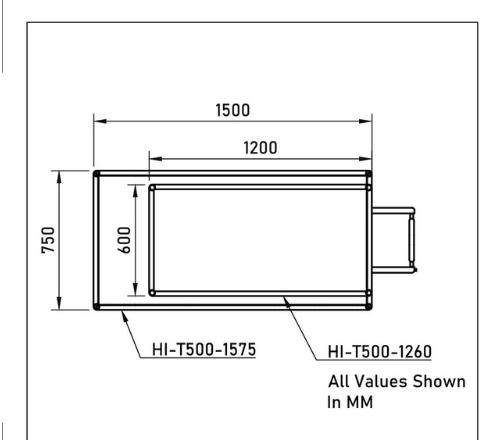

Available Bed Sizes

Choose the size that fits your operation:

• 1200mm x 600mm for smaller loads and tighter manoeuvrability

• 1500mm x 750mm for bulkier or higher volume loads

Custom sizes available on request.

What Is a Turntable Trailer?

A turntable trailer uses a heavy-duty rotating steering head that allows the trailer to naturally follow the operator when pulled. This makes steering easier, especially on rough or uneven ground.

The trailer can also be used with towing equipment, increasing productivity by allowing loads to be moved by vehicles in yards, warehouses, or outdoor areas.

Specifications

• Capacity: 500kg UDL
• Wheel Diameter: 254mm
• Wheel Type: Air Filled or Polyurethane Foam
• Parking Brake: No
• Base Height: 415mm
• Base Material: Phenolic Board
• Chassis Material: Steel
• Base Size Options: 1200mm x 600mm / 1500mm x 750mm

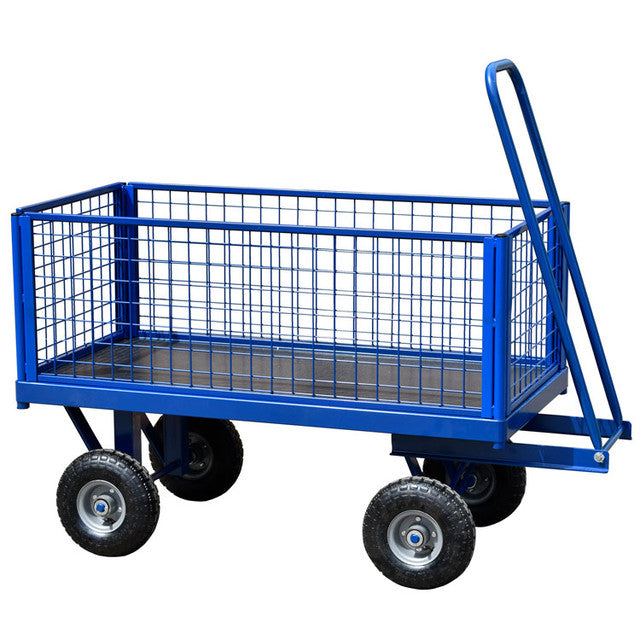

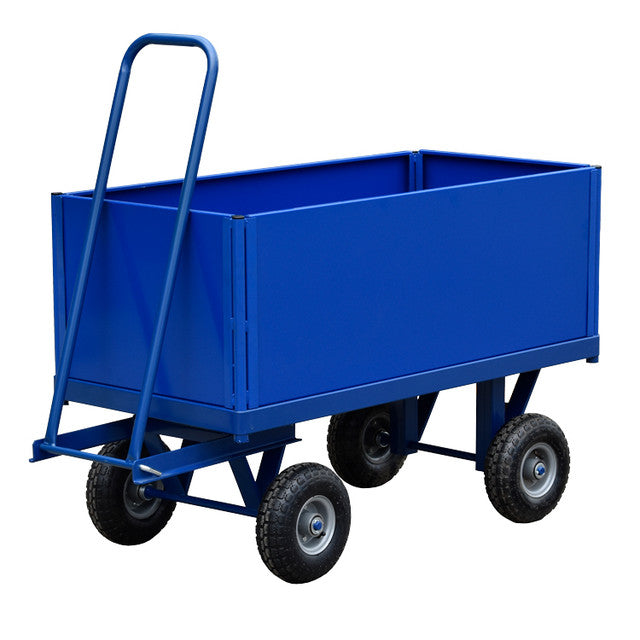

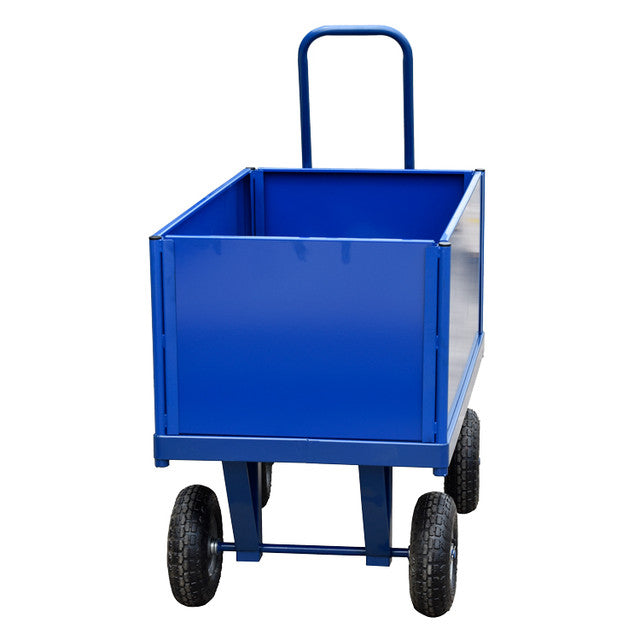

• Side Panel Options: 400mm High Mesh or 400mm High Steel
