Standard Manual Hydraulic Stacker - 1.6M Lift 500KG

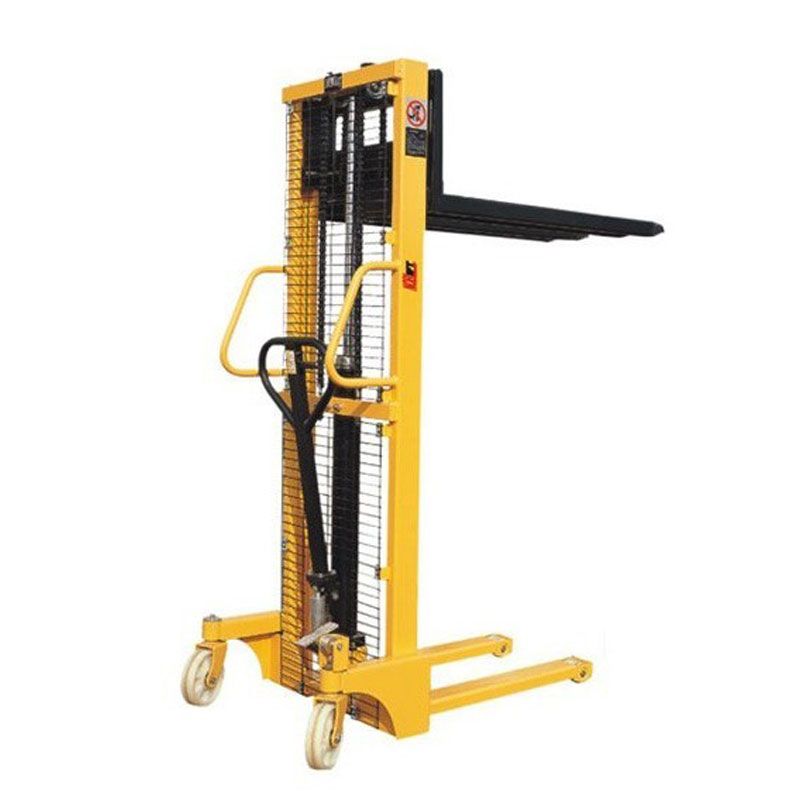

LO-EFS-0516 Manual Hydraulic Pallet Stacker – 500kg Capacity, 1600mm Lift

Make everyday pallet handling easier with the LO-EFS-0516 manual hydraulic stacker. With a 500kg load capacity and a maximum fork height of 1600mm, it provides a practical solution for lifting, moving, loading and unloading EURO and open-boarded pallets.

Ideal for warehouses, stockrooms and light manufacturing environments, the LO-EFS-0516 combines manual travel with hydraulic lifting. Unlike a standard pallet truck, it lifts pallets beyond ground level, helping you position loads for storage and handling tasks.

Its compact 700mm overall width is useful where working space is limited, while the 1050mm forks lower to 85mm for pallet entry. Check your pallet dimensions, load requirements and operating clearances to ensure a suitable fit.

Product specifications

• Load capacity: 500kg
• Drive: Manual
• Load centre: 550mm
• Net weight: 156kg
• Overall fork width, outside dimensions: 550mm
• Fork length: 1050mm
• Minimum fork height: 85mm
• Maximum fork height: 1600mm
• Lowered mast height: 2010mm
• Overall length: 1620mm
• Overall width: 700mm
• Ground clearance: 28mm
• Single load roller: Ø74 × 50mm
• Rear wheel: Ø150 × 42mm
• Pallet compatibility: EURO and open-boarded pallets
