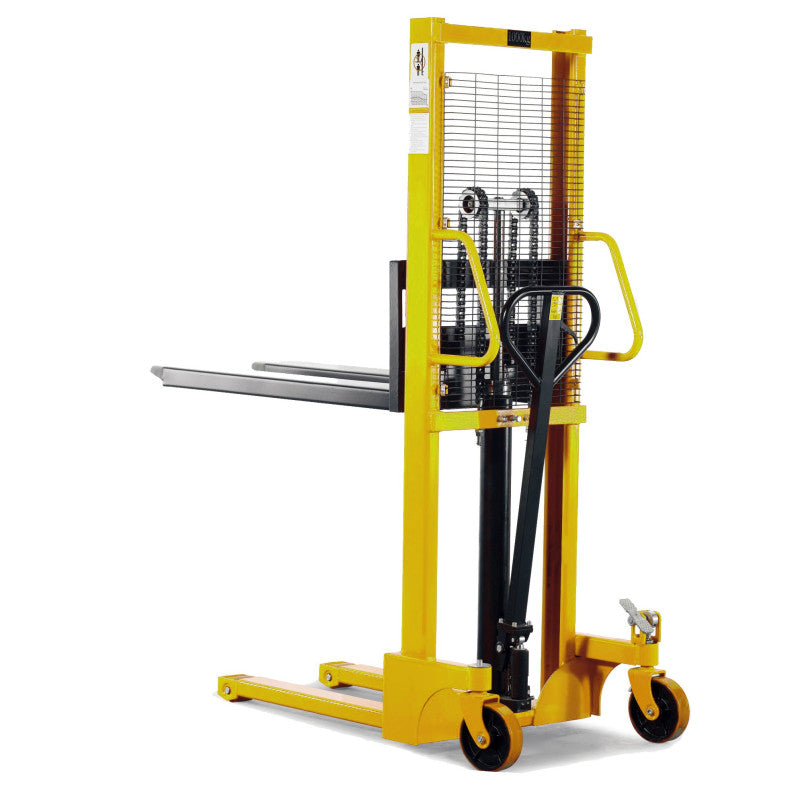

LOADICO LO-SFH-1016G Manual Pallet Stacker – 1000kg, 1.6m Lift
Make moving, lifting, loading and unloading palletised goods easier with the LOADICO LO-SFH-1016G Manual Pallet Stacker. With a 1000kg capacity and a maximum fork height of 1600mm, it combines hand-pump hydraulic lifting with a compact design for warehousing and light manufacturing applications.
A practical step up from a standard pallet truck, this manual stacker lets you raise pallets as well as move them. Its compact footprint makes it an economical alternative to a forklift truck for suitable handling tasks in smaller working areas.
Suitable for Euro and open-boarded pallets. For use beneath mezzanine floors, check the available clearance against the stacker’s mast dimensions before purchase.
Features
Hand-pump hydraulic lifting, 1000kg load capacity and a maximum fork height of 1600mm.
Product specifications
Capacity: 1000kg
Net weight: 220kg
Overall fork width, outside to outside: 550mm
Fork dimensions: 160mm × 60mm
Fork length: 1150mm
Minimum fork height: 85mm
Maximum fork height: 1600mm
Lowered mast height: 1980mm
Overall length: 1620mm
Overall width: 700mm
Turning radius: 1380mm
Steer wheel dimensions: Ø180mm × 50mm
Roller diameter: 74mm
