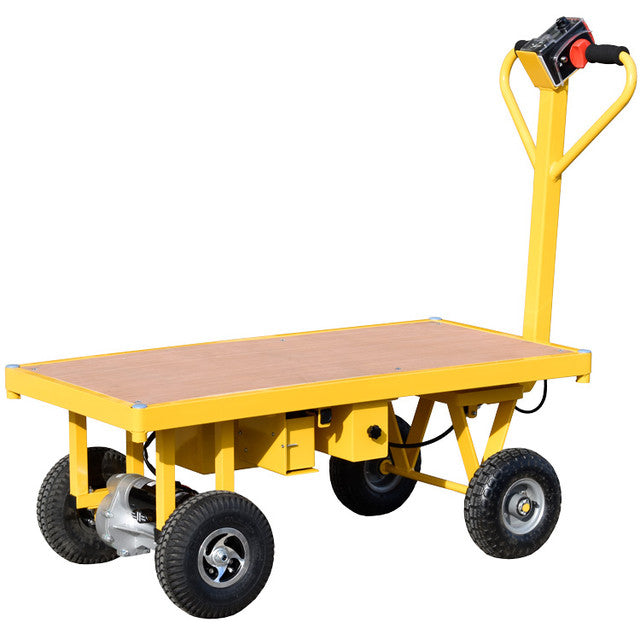

Electric Turntable Trailer

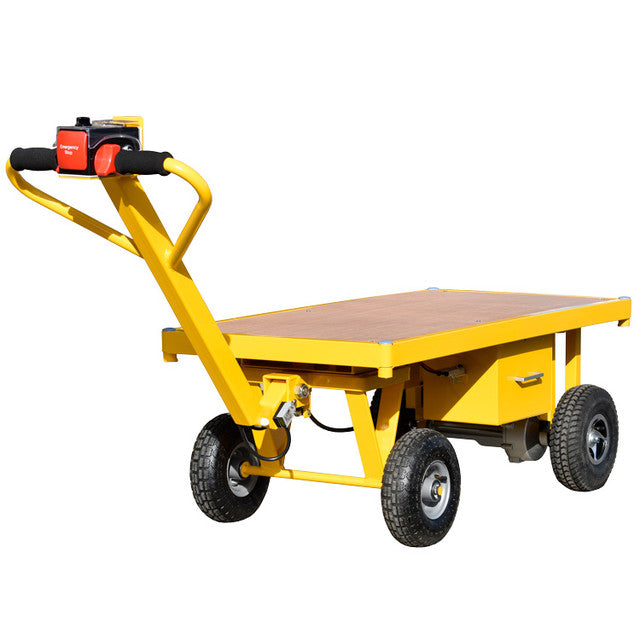

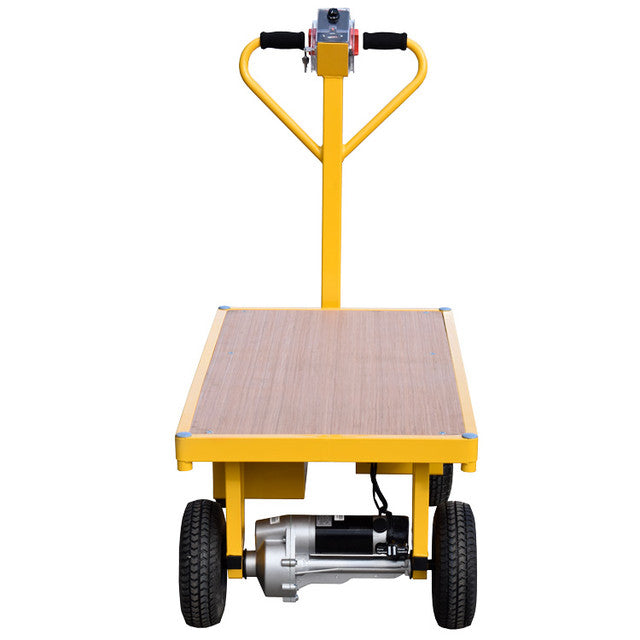

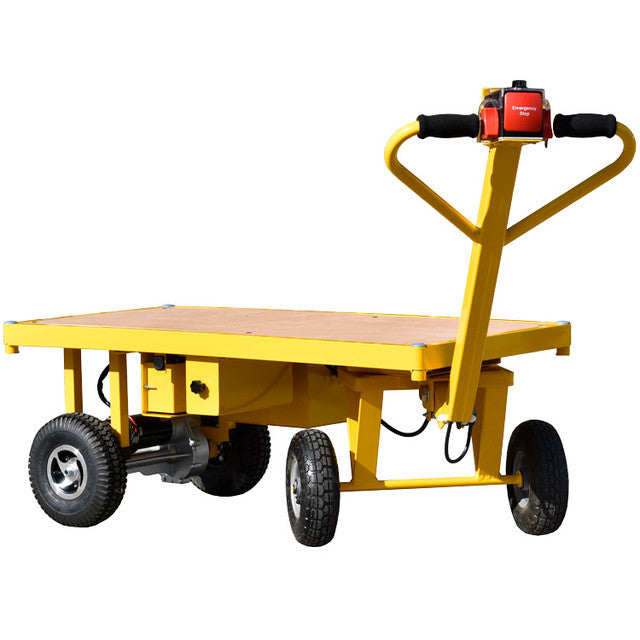

Powered Electric Turntable Trolley

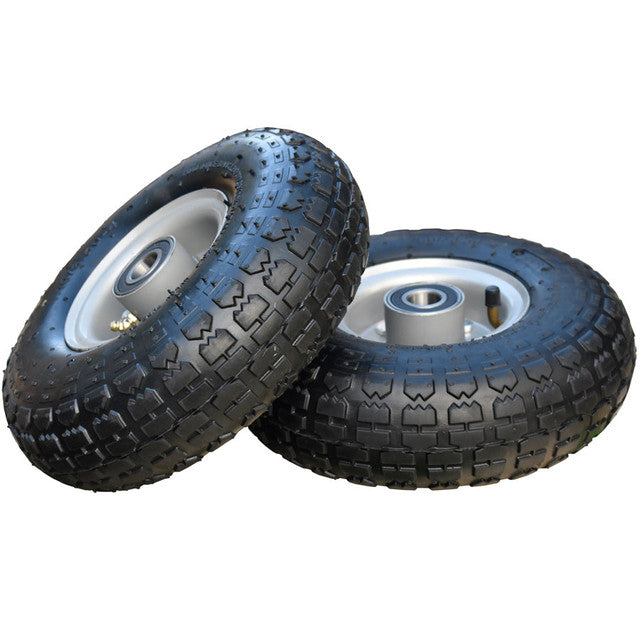

This electric turntable trolley replaces traditional push-style trolleys with a power-assisted, turntable steering system for smooth handling, even on rough terrain. Pneumatic wheels and a raised chassis make it tough and reliable, while a sturdy laser-cut steel base ensures maximum strength and durability.

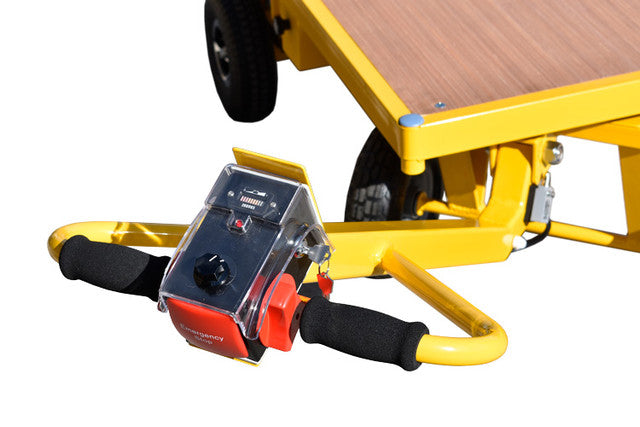

The trolley features an ergonomic handle with a butterfly throttle delivering 400W of high-torque power. LED battery indicators and a 20 km range let you monitor charge levels, and variable speed control allows adjustment from 1.5 km/h to 6 km/h for safe operation around pedestrians or tight spaces. Safety features include an anti-trap button, electromagnetic brakes, and a robust IP54-rated user interface.

The load surface is 18 mm weatherproof plywood, framed in steel for extra strength, while the battery is fully encased for protection. Intelligent microprocessor control manages acceleration, regenerative braking, speed, and safety warnings for a smooth, reliable experience.

Specifications:

• Capacity: 500 kg
• Base Size Options: 1200 x 600 mm, 1200 x 700 mm, 1200 x 800 mm, 1500 x 600 mm, 1500 x 700 mm, 1500 x 800 mm
• Base Height: 400 mm
• Overall Height: 1174 mm

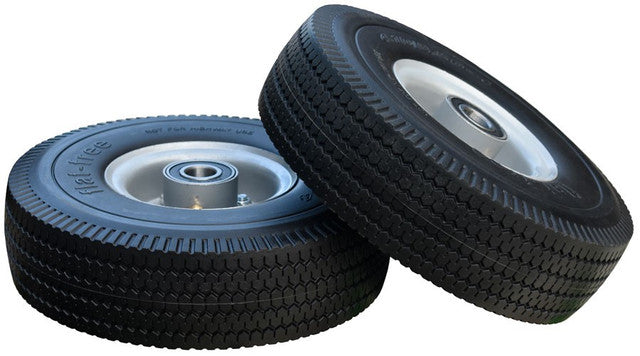

• Wheel Diameter: 254 mm
• Chassis Material: Steel
• Base Material: 18 mm weatherproof plywood
• Finish: Safety Yellow

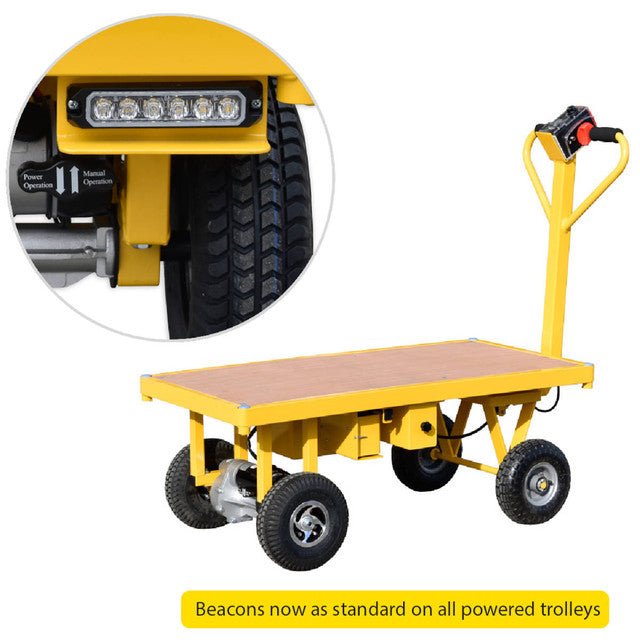

• Safety Beacons: 4 programmable
• Speed: 1.5–6 km/h (adjustable)
• Battery: 38 Ah
• Range per Charge: 18–24 km

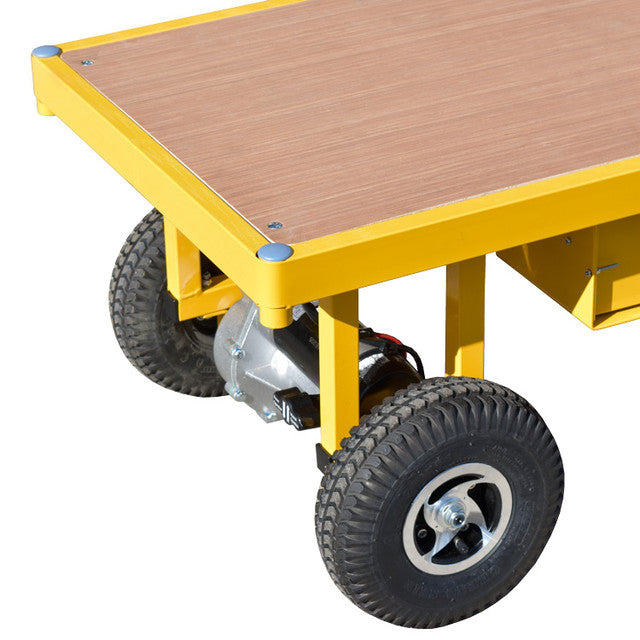

• Drive Motor: 24 V, 400 W, 25 N·m torque
